DISC Yamaha MSR400 Active PA Speaker

Full Description

Designed with an emphasis on clear and powerful sound, the MSR400 offers high quality audio reproduction, serious volume and gig hardy reliability making it a great choice for a wide range of sound reinforcement and live performance situations.

The MSR400 features a two-way bi-amplified system, independently driving the low and high-frequency drivers resulting in a rich sound with detail and clearity. The 12-inch cone type woofer and the 1.75-inch high-frequency horn driver deliver total output power of up to 400 watts (LF: 300 watts, HF: 100 watts burst; 300 watts continuous total).

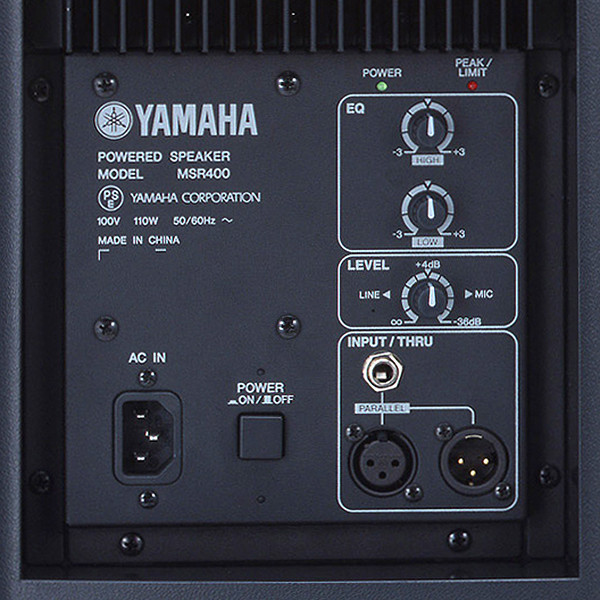

Equipped with an XLR and jack input connection, the MSR400 is able to accept signals directly from your mixer as well as other sources such as microphones, synthesizers or virtually any electronic musical instrument. The control section includes input level adjustment and a two-band equalizer allowing you to make fine adjustments for optimum matching with your input source. An LED signal indicator allows you to visually monitor the state of performance, displaying a green LED for a healthy signal and red for signal overload.

The MSR400 can used in a variety of different configurations. Floor standing, flipped into a stage wedge monitor position, or mounted on a standard speaker stand the MSR has the versatility to deliver high quality audio in any situation. Additionally the top surface of the cabinet provides 8-mm threaded holes that facilitate wall or ceiling mounting for rigging or permanent installation.

If looking for a flexible active PA speaker offering dependable gig-hardy reliability and clear audio reproduction, the Yamaha MSR400 is the perfect choice.

Specifications

• Speaker type: Bi-Amp 2-way powered speaker
• Frequency response:-10dB 50Hz-20kHz
• Nominal coverage: H 90° V 40°
• Components: LF 12" (30cm) cone HF 1.75" (4.4cm) voice coil compression driver
• Output power: LF: 225W, HF: 75W
• Maximum output level: (1m; on axis) 121dB SPL
• I/O connectors: XLR-3-31 type, XLR-3-32 type, Phone
• Processors: EQ (Low: +/-3dB; 55Hz, High: +/-3dB; HF)
• Power consumption: 110W
• Flying and mounting hardware: 2x M8-17
• Pole socket: 1x 1-3/8 inch
• Dimensions: W 406mm; 16in H 652mm; 25-5/8in D 351mm; 13-7/8in
• Net weight: 23kg; 50.7lbs
• Accessories: Owner's manual, AC power cord
