Key Features
- 2+2 channel DJ mixer packed with professional features
- Equipped with enhanced version of legendary Xone Filter
- VCA faders, 3-band total-kill EQ, and crossfader curve selector

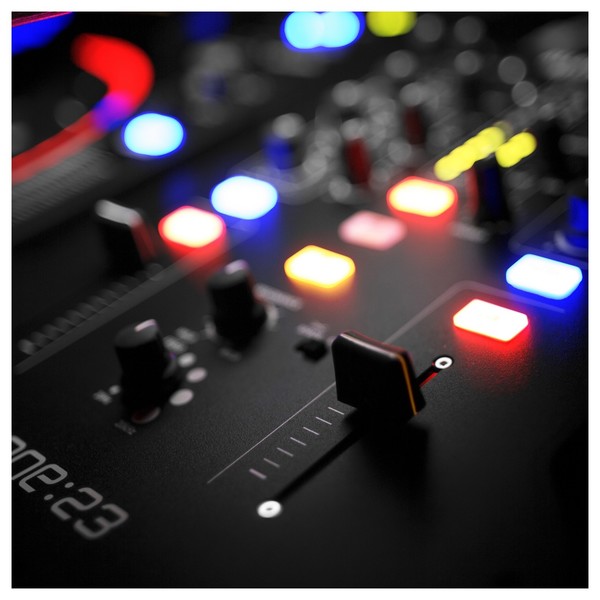

- Soft touch illuminated switches inspires by Xone:DB4
- User-changeable crossfader with Innofader compatibility

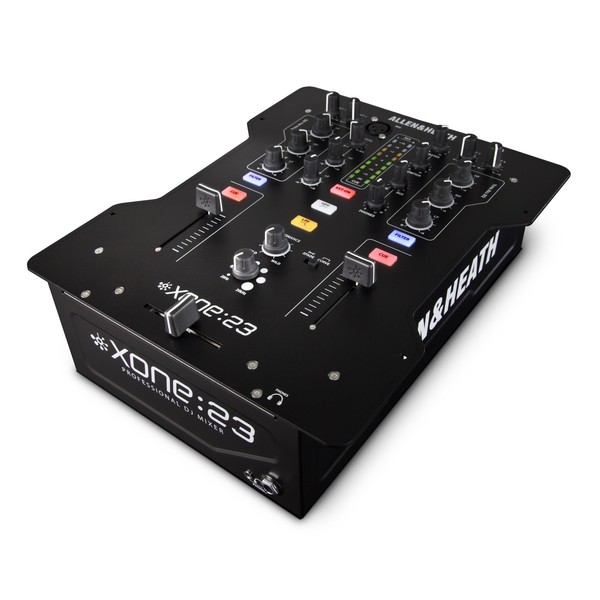

Allen and Heath Xone:23 DJ Mixer Overview
Get deeper into the mix. A real hands-on experience. The Allen & Heath Xone:23 DJ Mixer features 2+2 stereo channels providing intuitive mixing control. Based on the flagship Xone:DB4, the Xone:23 mixer is equipped with soft-touch backlit controls, light-piped meters, balanced XLR connectors and 9-segment peak meters.
Also featured in the Xone:23 is an innovative VCF system with low-pass and high-pass filters, as well as frequency and resonance controls. This is coupled with incredibly smooth VCA channel faders which ensure precise control. The Allen & Heath Xone:23 is the ideal mixer for both professional and aspiring DJs looking to integrate a high-quality mixer into any setup, and is built to deliver exceptional performance in a wide variety of situations.
Product Ref: 43128
Full Description
View Full DescriptionFlagship-inspired design
Only the best. Mix with ease thanks to a range of incredible features. The Xone:23 DJ Mixer includes an enhanced version of the legendary Xone filter with resonance control, VCA Faders, band-total kill EQ, illuminated switches, crossfader curve selector and styling inspired by the flagship Xone:DB4. If you care about your gear and want to perform with only the best of what's on offer, then the Xone:23 is a must-have. Pure power, that suits any budget.
Innofader compatible
Full, custom control. The Xone:23 is compatible with Innofader, allowing you to upgrade the standard crossfader to a custom Innofader crossfader for the ultimate performance. The stock crossfader on the Xone:23 mixer is reliable and durable but if you are a scratch DJ, the Innofader-compatibility allows you to install the perfect fader to suit any mixing style. The crossfader also features 3 different curve settings for you to choose from, allowing you to choose between either a smooth transition or a sharp response.
Features
- 2+2 channels with dual phono/line inputs
- VCF filter system - Low-pass and high-pass filters, plus frequency and resonance controls

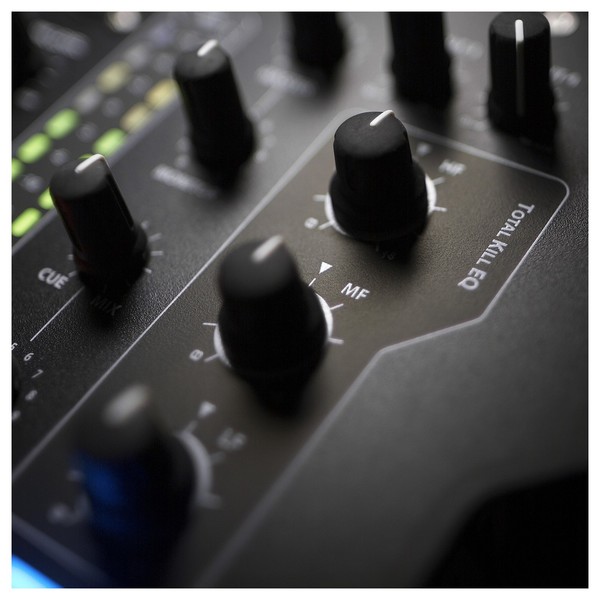

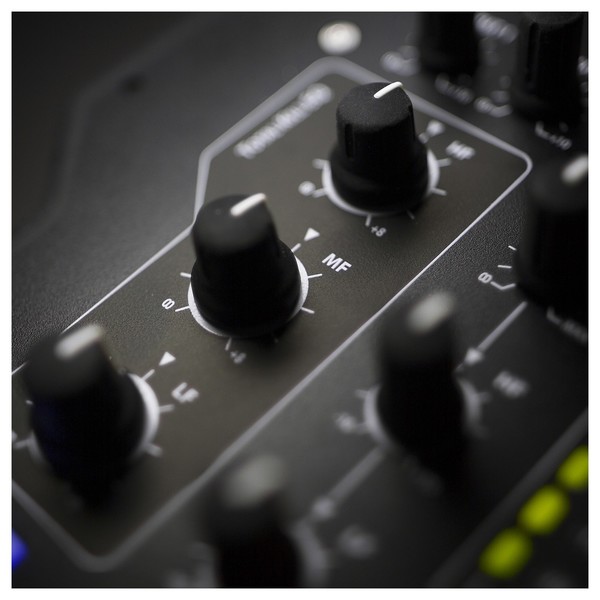

- 3-band true total-kill EQ
- External FX loop
- Balanced XLR microphone input with dedicated 2-band EQ
- Balanced main mix output on XLR
- Independent booth output
- Record output

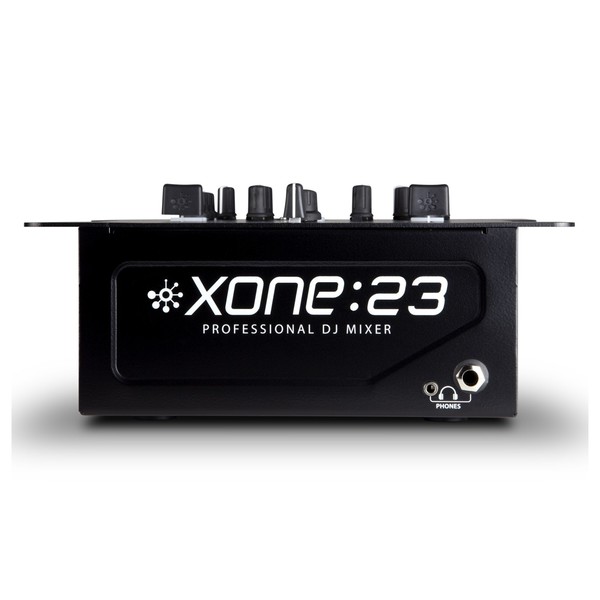

- 3.5mm and 1/4'' TRS headphone outputs
- Tour-grade build quality
- Super-smooth VCA channel faders

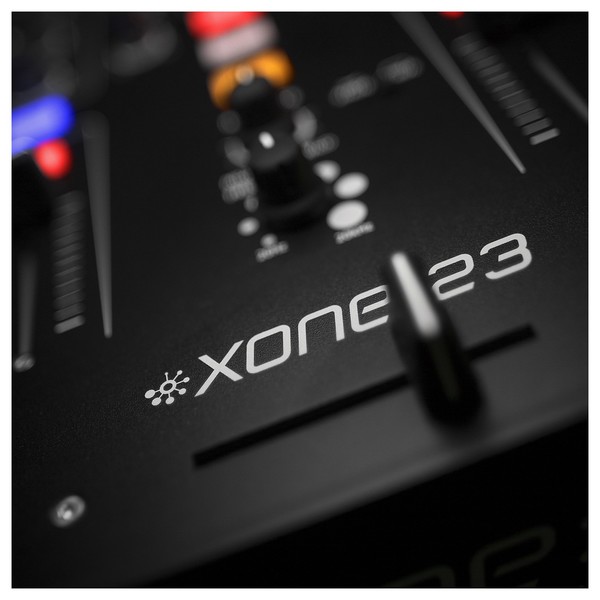

- User-changeable crossfader
- Innofader-compatible
- Crossfader curve switch
- 20dB pro standard headroom
- Ultra-low distortion
- 2mm steel face-plate

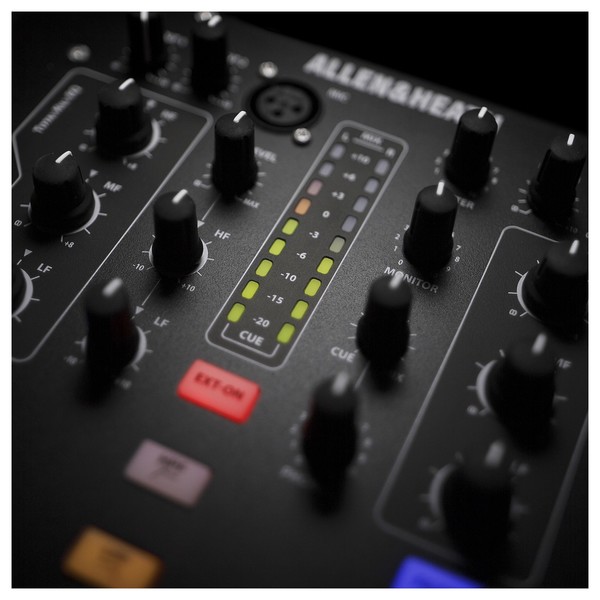

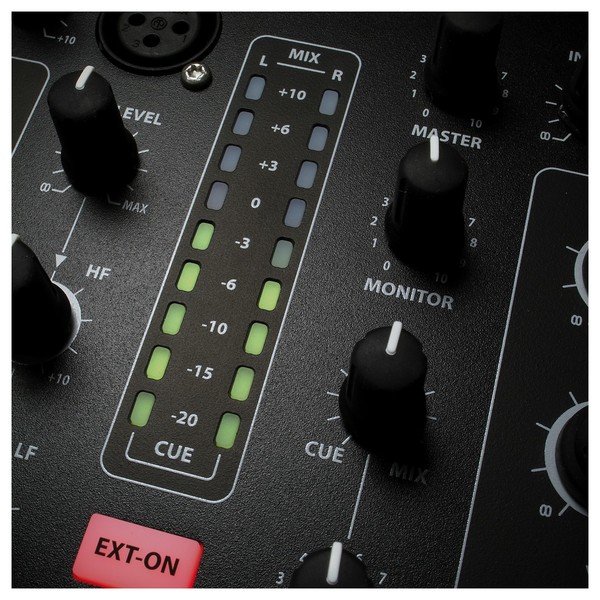

- 9-segment signal level monitoring
Specifications

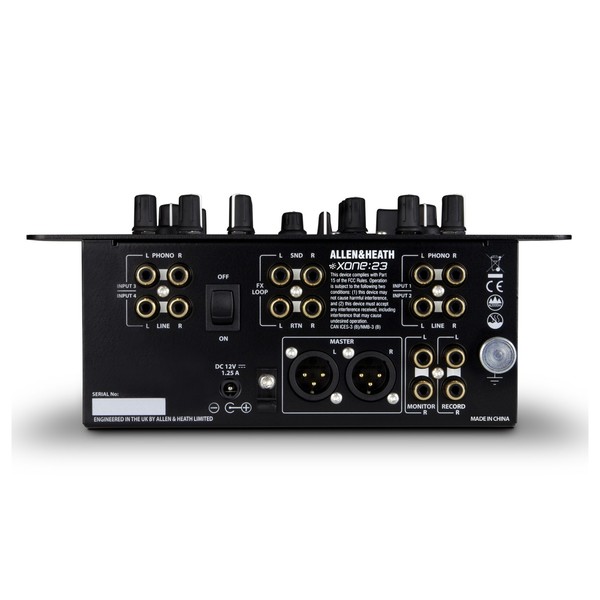

Inputs
- Phono:
- Connection: RCA
- Impedance: 47k/330pF
- Nominal Level: 7mV - 100mV
- Line:
- Connection: RCA
- Impedance: 20K Ohms
- Nominal Level: -10 to +20dBu
- FX RTN:
- Connection: RCA
- Impedance: 10K Ohms
- Nominal Level: 0 to +20dBu
- Mic:
- Connection: XLR
- Impedance:
- Nominal Level: -42 to -12dBu

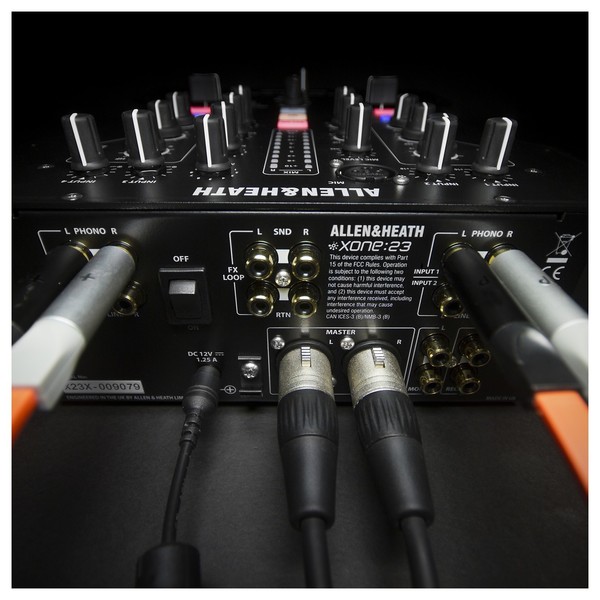

Output
- Main Mix:
- Connection: Balanced XLR
- Impedance: 100 Ohms
- Nominal Level: +4dBu
- Maximum Level: +28dBu
- Monitor:
- Connection: RCA
- Impedance: 100 Ohms
- Nominal Level: -2dBu
- Maximum Level: +22dBu
- Record:
- Connection: RCA
- Impedance: 100 Ohms
- Nominal Level: -2dBu
- Maximum Level: +19dBu
- FX SND:
- Connection: RCA
- Impedance: 100 Ohms
- Nominal Level: -2dBu
- Maximum Level: +19dBu
- Headphones:
- Connection: 3.5mm & 1/4'' TRS Jacks
- Impedance: 1 Ohm
- Maximum Level: 200mW RMS into 30 Ohms
Performance & Physical
- Distortion: +10dBu Nominal Level, 0.01 THD+N
- Noise 22-22kHz: Unity Nominal Level, -85dBu un-weighted
- Fader Shut Off: >-80dB
- Xfade Shut Off: >-80dB
- Frequency Response: 10Hz to 50kHz, +/-0dB
- Weight: 2.7kg / 6lbs
- Dimensions: 240mm x 300mm x 84mm
